Production Introduction

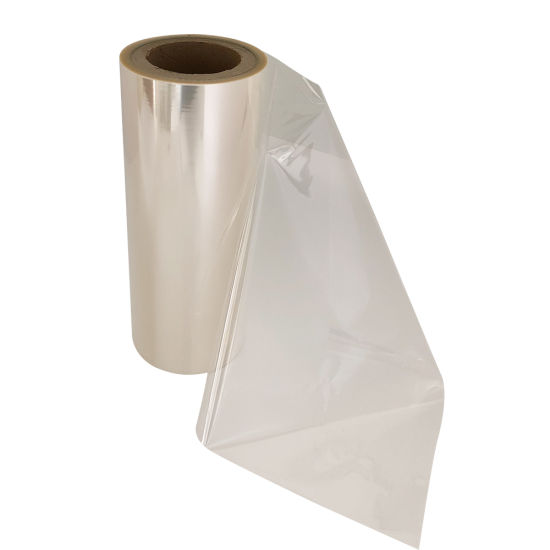

PET ALOx-01 is a transparent, high barrier, biaxial oriented polyester film, which is vacuum coated on corona treated side with ALOx, and a protect layer on top of ALOx. The other side is plain surface. Eco-friendly and sustainable.
Features | PET ALOX High Barrier Film |
|
Item | Unit | Test Method | Typical Value | |||||
Thickness | Mic | ASTM D374 | 10/12 | |||||
Gauge | 48 | |||||||
Density | g/cm³ | Internal Method | 1.4 | |||||
Tensile Strength | MD | Mpa | ASTM D882 | 232 | ||||
TD | Mpa | 220 | ||||||
Elongation at Break | MD | % | ASTM D1894 | 103 | ||||
TD | % | 108 | ||||||
Friction Coefficient | ALOx side/ Untreated side | Dynamic | ASTM D1894 | 0.5 | ||||
Light Transmission | % | Internal Method | 87 | |||||
Dyne | ALOx side | mN/m | Internal Method | 56 | ||||
Untreated side | mN/m | 48 | ||||||
WVTR (38ºC & 90%RH) | g/(m2·24h) | ASTM F1249 | 1.0 | |||||
OTR (23ºC & 0.1Mpa) | cm³/(m²·24h·0.1Mpa) | ASTM D3985 | 1.0 | |||||
Testing Condition: Temperature: 23ºC | Relative Humidity: 50% |
Application
Structure | Composition Technique | Barrier Properties of ALOx film | Barrier Properties of Composition Structure | |||||||
Composition | Glue Amount (g/m2) | Peeling Strength | WVTR | OTR | WVTR | OTR | ||||
ALOX-01/INK/PE | Dry | 2.5-2.8 | 2.3N | 1.4N | 1.0 | 1.0 | 1.0 | 1.5 | 1.0 | 1.9 |
Core ID | Standard Length | Package Pallet |
76mm/3 in | 6000mtrs/20000ft | Suspend Package |
12000mtrs/40000ft |
Storage and Handling
Frequently Asked Questions
Q1: May I get one sample before placing order?
Re: Yes, Sample are available. For normal products, samples are for free and you just need to bear the freight;
For those high value products, you just need to freight and certain product cost. When we both cooperate for
some times or when you are our VIP customer, free sample will be offered when you need.
Q2: Which payment is available for your company?
Re: T/T, L/C or Alibaba trade insurance. You can choose the one which is convenient for you.
Q3: How and when can I get my goods after payment?
Re: For small quantity products, they will be delivered to you by international courier(DHL, FedEx, TNT etc.)
or by air. Usually it will cost 3-5days that you can get the goods after delivery.For large quantity products,
shipping by see is worthwhile.It will cost days to weeks to come to your destination port, which depends on
where the port is.
Q4: Is there any possible to use my appointed label or package?
Re: Yes. If needed, we'd like to use label or package according to your requirement.
Q5: How can you guarantee the goods you offer is qualified?
Re: We always believe honesty and responsibility are basis of one company, so whatever products we provide
for you all are qualified. We will have goods tested and provide COA before delivery for sure.
